Unlocking the Potential of Drone Photogrammetry: A Beginner's Guide

Welcome to the fascinating world of Drone Photogrammetry, a revolutionary technology that is transforming how we capture and interpret the world around us. In recent years, drone photogrammetry has surged in popularity across various industries, owing to its remarkable ability to create detailed, three-dimensional maps and models from aerial photographs. This cutting-edge technique is not only reshaping fields like construction, agriculture, and urban planning but also opening new vistas in archaeology, environmental monitoring, and even disaster response.

At Carrot Drone Services, we understand that the concept of photogrammetry, particularly when combined with drone technology, might seem daunting to beginners. That's why we've tailored this blog to demystify this innovative process, offering a clear and comprehensive guide that's perfect for those just starting out. Our aim is to equip you with the fundamental knowledge and insights needed to appreciate the power and potential of drone photogrammetry, paving the way for its practical applications in your field of interest.

Whether you're a hobbyist eager to explore new technologies, a professional seeking to enhance your skillset, or simply curious about the capabilities of drone photogrammetry, this guide is your first step into a world where the sky is not the limit, but rather, your canvas. So, let's embark on this journey together and uncover the myriad ways drone photogrammetry can elevate your perspective.

What is Drone Photogrammetry?

Photogrammetry, at its core, is the science of making measurements from photographs. This technique involves taking multiple photographs from different angles and using them to create maps, drawings, or 3D models of real-world objects or environments. Drone Photogrammetry takes this concept to new heights by utilising unmanned aerial vehicles (UAVs), commonly known as drones, to capture these images.

The process of drone photogrammetry begins with a drone equipped with a high-resolution camera flying over a designated area. As it flies, the drone captures a series of overlapping images. These images are then processed using specialised software that stitches them together to create highly accurate 2D or 3D representations of the surveyed area.

This method of data collection offers several advantages over traditional surveying techniques. First and foremost, it is significantly faster, allowing large areas to be surveyed in a fraction of the time it would take with ground-based methods. Secondly, it is more cost-effective, reducing the need for expensive and time-consuming manual labor. Furthermore, drone photogrammetry can access difficult or dangerous terrain without risking human safety, making it an ideal choice for challenging environments. Its precision and accuracy in data collection are unparalleled, providing detailed insights that are crucial for planning, decision-making, and analysis in various industries.

Drone photogrammetry has become a preferred method for many professionals due to these efficiencies and accuracies. It is revolutionising industries such as construction, agriculture, mining, and environmental science, providing a level of detail and perspective that was previously unattainable or prohibitively expensive.

Applications of Drone Photogrammetry

Drone photogrammetry has found a remarkable array of applications across diverse sectors, demonstrating its versatility and effectiveness in numerous fields. Below are some of the key areas where drone photogrammetry is making a significant impact:

Agriculture

In the realm of agriculture, drone photogrammetry is revolutionising the way farmers and agronomists manage their crops. By providing detailed aerial views of fields, it enables precision agriculture. Farmers can monitor crop health, assess damage after natural disasters, and plan irrigation or pesticide applications more effectively. For instance, a study in Spain utilised drone photogrammetry to optimise vineyard yields, leading to better crop management and increased production efficiency.

Construction and Real Estate

In construction, drone photogrammetry is used for site planning, monitoring construction progress, and maintaining records of the built environment. It offers a rapid, accurate, and cost-effective means of surveying large construction sites. A notable example is the use of drone photogrammetry in the construction of the New Istanbul Airport, where it played a pivotal role in site planning and progress tracking. In real estate, it provides potential buyers with detailed views of properties, enhancing marketing efforts and aiding in property valuation.

Environmental Monitoring and Conservation

Environmental scientists and conservationists are utilising drone photogrammetry for habitat monitoring, wildlife conservation, and tracking changes in landscapes due to climate change or human activities. An impactful case study is the use of drones in the Amazon rainforest to monitor deforestation and assist in reforestation efforts, providing invaluable data to environmentalists and policy makers.

These examples only scratch the surface of what drone photogrammetry can achieve. Its applications are expanding continuously, offering innovative solutions to age-old problems and opening up new possibilities for research and development across various sectors.

Getting Started with Drone Photogrammetry

Embarking on your drone photogrammetry journey requires understanding the essential equipment and setup. Here's a guide to help you get started:

Equipment Needed

The first step is selecting the right drone and camera. For drone photogrammetry, stability and camera quality are key. Drones like the DJI Phantom or Mavic series are popular choices due to their stability, image quality, and ease of use. The camera should be capable of capturing high-resolution images; many drones come equipped with suitable cameras. Alternatively, for specialised tasks, drones that can carry DSLR or mirrorless cameras might be preferable. Additionally, consider extra batteries and memory cards for longer missions.

Basic Setup

Setting up your drone for photogrammetry involves a few crucial steps:

• Ensure your drone's firmware is up to date.
• Calibrate the drone's compass and GPS settings for accurate positioning.
• Attach the camera securely and check its settings for optimal image quality.
• Plan your flight path: Ensure it covers the entire area of interest with sufficient overlap between images.

Software Options

Once you've captured the images, photogrammetry software is used to process them into maps or 3D models. Software options range from user-friendly platforms like Pix4D and Agisoft Metashape, suitable for beginners, to more advanced solutions like Autodesk ReCap, which offers extensive features for professional use. Most software provides a trial period, allowing you to determine which platform best suits your needs before making a purchase.

With the right equipment, setup, and software, you're well on your way to exploring the capabilities and benefits of drone photogrammetry. This technology opens up a world of possibilities, whether you're a hobbyist, a researcher, or a professional in various industries.

Planning a Photogrammetry Mission

Successful drone photogrammetry missions begin with thorough planning. This stage is crucial for ensuring the safety, legality, and effectiveness of your flight. Here are the key aspects to consider:

Site Assessment

Assessing the site involves understanding the geography and physical characteristics of the area. Consider factors such as terrain, obstacles like buildings or trees, and the presence of sensitive areas like wildlife habitats. This assessment will help you determine the best flight paths, altitudes, and times for your mission. Utilise satellite imagery or existing maps to familiarise yourself with the site beforehand.

Flight Planning

Effective flight planning is essential for capturing quality data. Plan your flight path to ensure comprehensive coverage of the area. Ensure there is sufficient overlap (usually around 70-80%) between images for accurate stitching. Consider the lighting conditions, weather forecasts, and wind speeds on the day of the flight. It's also advisable to have contingency plans in case of unforeseen circumstances.

Obtaining Necessary Permissions and Adhering to Regulations

Before flying a drone, it's imperative to be aware of and comply with local drone regulations and airspace restrictions. Obtain any necessary permissions or permits, especially if you're flying in urban areas or near sensitive sites. Check for any specific requirements such as notifying local authorities or property owners. In the UK, for instance, you must adhere to the regulations set by the Civil Aviation Authority (CAA) and register your drone if it weighs over 250 grams. Always prioritise safety and privacy concerns, ensuring your flight does not intrude on private spaces or endanger people and property.

By meticulously planning your photogrammetry mission, you can maximise the efficiency of your operation and ensure you collect high-quality, actionable data while complying with all necessary regulations and respecting privacy and safety guidelines.

Conducting a Photogrammetry Flight

Executing a successful photogrammetry flight involves a series of steps to ensure you capture the best possible data. Follow this guide for a smooth and effective flight:

Pre-Flight Checklist

Before taking off, ensure that your drone and all equipment are in good working order. Check the battery levels, ensure the camera settings are appropriate for the conditions, and confirm that the GPS signal is strong. Also, recheck the weather conditions and wind speeds.

Launching the Drone

Choose a safe and clear area for takeoff. Launch the drone and let it hover for a few moments to ensure stability. Once you're confident in the drone's performance, begin following the predetermined flight path.

Executing the Flight Plan

Adhere to the flight plan you've laid out, ensuring that the drone covers the entire area of interest. Maintain the altitude and speed consistent with your planning to ensure image consistency. Regularly monitor the drone’s battery level and be prepared to return it to the launch point if needed.

Capturing Quality Images

• Ensure adequate overlap: Aim for at least 70-80% overlap between successive images for effective data stitching.
• Stable speed: Maintain a consistent speed to ensure uniform image quality.
• Lighting conditions: Conduct flights during times when the lighting is even, typically during the morning or late afternoon, to avoid harsh shadows.
• Camera settings: Use a high shutter speed to avoid motion blur and set the camera to manual mode to maintain consistent exposure settings throughout the flight.

Post-Flight Procedures

After the flight, safely land the drone and perform a quick check to ensure all data has been properly recorded. Backup the images immediately to prevent data loss. Review the images to check for any gaps in coverage or issues with image quality.

By following these steps and tips, you can effectively conduct a photogrammetry flight, capturing high-quality images that will lead to accurate and detailed photogrammetric models or maps.

Processing and Analysing Data

Once you have captured your images, the next step is to process and analyse them to extract valuable information. This is where photogrammetry software comes into play. Here’s how to go about it:

Processing Images with Photogrammetry Software

Choose a photogrammetry software that suits your needs - options range from user-friendly platforms like Pix4D and Agisoft Metashape to more advanced tools like Autodesk ReCap. The basic steps in processing are similar across most software:

1. Importing Images: Load all the captured images into the software.

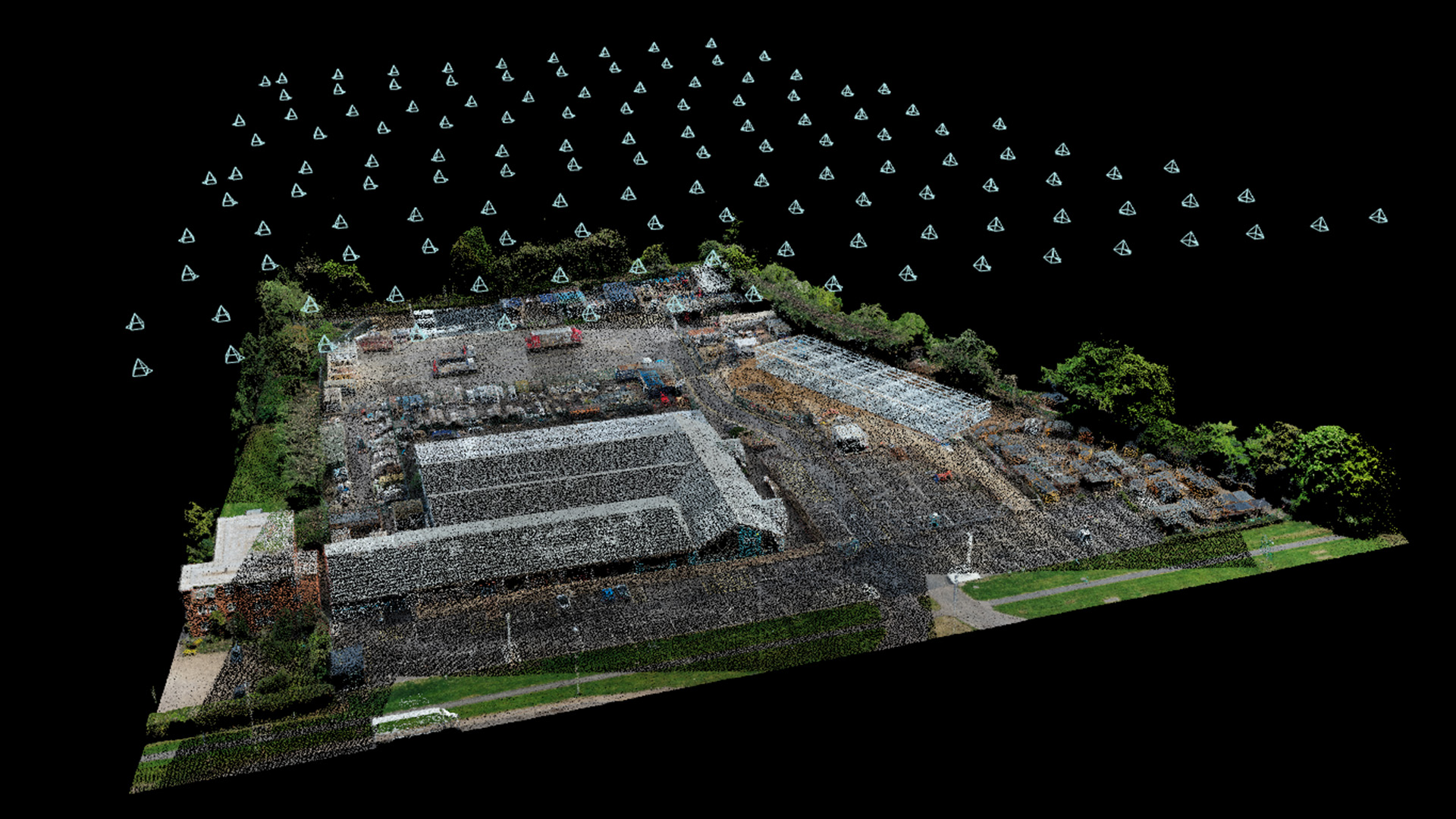

2. Image Alignment: The software will align the images based on overlapping features. This step creates a sparse point cloud, giving you a first look at the shape of your subject.
3. Dense Point Cloud Generation: The software processes the images further to create a dense point cloud, providing more detail and depth.
4. Mesh Generation: The dense point cloud is used to generate a 3D mesh, which is a more tangible model of your subject.
5. Texture Mapping: The software applies the original images onto the 3D mesh to add textures and colors, resulting in a realistic 3D model.
6. Exporting the Data: Finally, export the processed data in the desired format, such as a 3D model file or a georeferenced map.

Interpreting and Using the Data

The data generated from photogrammetry can be incredibly diverse, depending on your project. For example, in construction, you might use a 3D model to monitor progress or plan future work. In agriculture, a processed map can reveal crop health or irrigation needs. The key is to understand the specific metrics and visuals relevant to your field. Look for patterns, anomalies, or specific features that can inform your decision-making or provide insights into the subject you are studying.

It's also important to validate the accuracy of your data, either by comparing it with known measurements or through field verification. This ensures that the conclusions you draw from the data are reliable and actionable.

By mastering the processing and analysis of photogrammetry data, you can unlock a wealth of information and take your projects to new heights of precision and insight.

Best Practices and Tips for Beginners in Drone Photogrammetry

Embarking on your drone photogrammetry journey can be exciting, but it’s crucial to follow best practices to ensure effective and safe operations. Here are some key tips and troubleshooting advice for beginners:

Best Practices for Effective Drone Photogrammetry

• Understand Local Drone Laws: Familiarise yourself with the drone regulations in your area to ensure legal compliance.
• Pre-Flight Checks: Always perform thorough pre-flight checks on your drone and equipment to avoid technical failures.
• Plan Your Flight Path Carefully: A well-planned flight path is essential for comprehensive data capture and battery efficiency.
• Maintain Line of Sight: Keep your drone within your line of sight at all times for safety and better control.
• Be Mindful of Weather Conditions: Avoid flying in adverse weather conditions that can affect drone stability and image quality.

Troubleshooting Common Issues

• GPS Signal Loss: If you lose GPS signal, have a contingency plan, such as manual control or a return-to-home feature.
• Camera or Battery Issues: Always carry spare batteries and check camera settings before the flight to prevent mid-mission failures.
• Data Overlap Errors: Ensure adequate overlap between images during planning to avoid gaps in data.
• Poor Image Quality: Check for lens cleanliness and calibrate camera settings according to the lighting conditions.

Tips to Improve Accuracy

• Use High-Quality Equipment: Investing in a good quality drone and camera can significantly improve the accuracy of your data.
• Regular Calibration: Regularly calibrate your drone's sensors and camera for precise measurements.
• Consistent Flight Altitude: Maintain a consistent altitude during flights for uniform image quality and scale.
• Post-Processing Accuracy: Use reliable photogrammetry software and take time to fine-tune the settings for the best results.

By adhering to these best practices and tips, beginners can significantly enhance the safety, efficiency, and accuracy of their drone photogrammetry endeavors. Remember, practice and continuous learning are key to mastering this innovative technology.

Conclusion

Drone photogrammetry is an innovative and transformative technology that is reshaping a multitude of industries, from agriculture and construction to environmental monitoring and beyond. As we've explored in this guide, the key to successful drone photogrammetry lies in understanding the basics, choosing the right equipment, careful planning, precise execution, and thorough data processing and analysis.

For beginners, the journey into drone photogrammetry is both exciting and rewarding. It offers the opportunity to capture unique perspectives, gather detailed data, and make informed decisions based on accurate 3D models and maps. With the best practices, tips, and troubleshooting advice provided, you are now equipped to start your own drone photogrammetry projects with confidence and skill.
